Welding automatic filter
Many ADF filters, viewing size is 90x35mm 92x42mm/98x40mm/100X50mm/100×60mm...
Suitable for ARC, TIG, MIG, Spot, Micro, Wire, AC, DC, and Plasma Welders and Plasma Cutters.
ADF filters Details are below:
Mark: Below filters can produce two levels: one is for family use, one layer ADF filter. the other is for workshop or factory use, two layer ADF filter.
Filter No. |
view size |
shade |
sensitivity button |
delay |
self test |
grind |
low battery warning |
battery change |
Filter(ADF) more general information |

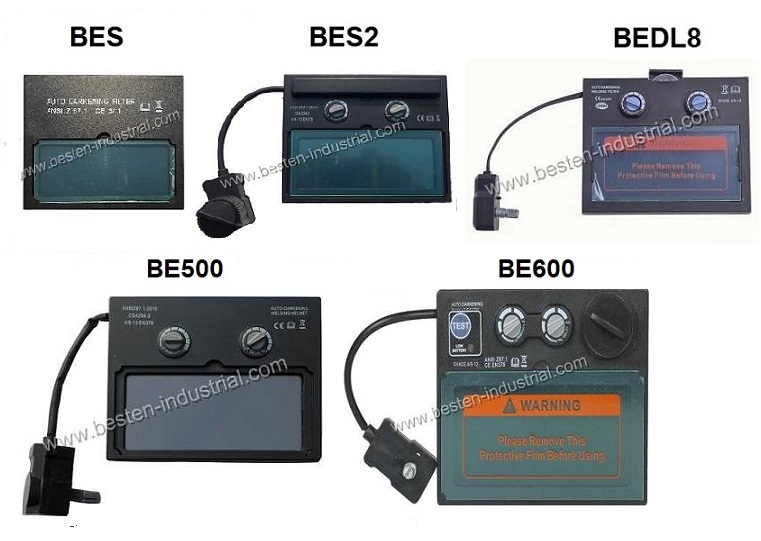

BES |
90x35 mm |
DIN3/11 |
auto |
auto |
no |
no |
no |
yes |
Filter no.: BES Cartridge size:110x90x9mm Power supply: solar cells and lithium battery Viewing size: 90*35mm Optical class: 1/2/1/2 Switching time: <1/25000s Dark to light:0.6S UV/IV protection: DIN16 |
BES2 |
90x35 mm |
DIN 4/9-13 |
yes |
yes |
no |
yes |
no |
yes |
Filter no.: BES2 Power supply: solar cells and 2 AAA battery Cartridge size:110x90x9mm Viewing size: 90*35mm Optical class: 1/2/1/2 Switching time: <1/25000s Dark to light:0.2-0.8S adjustable UV/IV protection:DIN16 |
BEDL8 |
92x42 mm |
DIN 4/9-13 |
yes |
yes |
no |
yes |
no |
yes |
Filter no.: BEDL8 Cartridge size:110x90x9mm Opticalclass:1/1/1/2 Power supply: solar cells and lithium battery Switching time: <1/25000s Dark to light:0.2-0.8s adjustable UV/IV protection:DIN16 |
BE500 |
92x42 mm |
DIN 4/9-13 |
yes |
yes |
no |
yes |
no |
no |
Filter no.: BE500 Cartridge size:110x90x9mm Optical class: 1/1/1/2 Power supply: solar cells and lithium battery Switching time: <1/25000s Dark to light:0.2S~0.8S adjustable UV/IV protection:DIN16 |
BE600 |
92x42 mm |
DIN 4/9-13 |
yes |
yes |
yes |
yes |
yes |
yes |
Filter: BE600 Cartridge size:110x90x9mm Optical class:1/1/1/2 Power supply: solar cells and lithium battery Switching time: <1/25000s Dark to light:0.2S ~0.8S adjustable UV/IV protection:DIN16 |
Mark: Below filters only can be produced two layer ADF filters.
Filter No.
view size
mm
shade
sensitivity button
delay
self test
grind
low battery warning
battery change
Filter(ADF) more general information

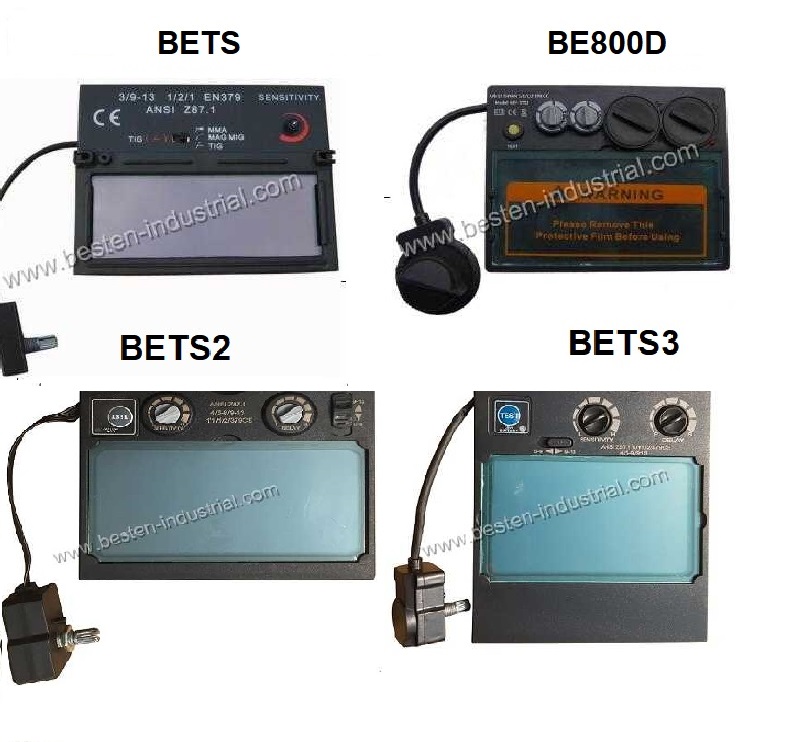

BETS
98x40
mm
DIN 4/9-13
yes
yes
no
yes
no
yes
Filter no.: BETS
Cartridge size:110x90x9mm
Power supply: solar cells and
lithium battery
Viewing size:98*40mm
Optical class: 1/1/1/2
Switching time: <1/25000s
Dark to light:0.6S
UV/IV protection: DIN16
BE800D
100x50
mm
DIN 4/9-13
yes
yes
yes
yes
yes
yes
Filter no.: BE800D
Power supply: solar cells and lithium battery
Cartridge size:110x90x9mm
Viewing size:100*50mm
Optical class: 1/1/1/2
Switching time: <1/25000s
Dark to light:0.2-0.8S adjustable
UV/IV protection:DIN16
BETS2
100x50
mm
DIN4 /DIN5-9 or 9-13
yes
yes
yes
yes
yes
yes
Filter no.: BETS2
Cartridge size:110x90x9mm
Opticalclass:1/1/1/2 Power supply: solar cells and lithium battery
Switching time: <1/25000s
Dark to light:0.2-0.8s adjustable
UV/IV protection:DIN16
BETS3
100X50
DIN4 /DIN5-9 or 9-13
yes
yes
yes
yes
yes
yes
Filter no.: BETS3
Cartridge size:110x90x9mm
Optical class: 1/1/1/2
Power supply: solar cells and lithium battery
Switching time: <1/25000s
Dark to light:0.2S~0.8S
adjustable
UV/IV protection:DIN16
