Home > PRODUCTS > Auto-darkening welding helmet > BE9000

BE9000

Prev Next

BE9000 Auto-darkening welding helmet

Auto-darkening welding helmet
Attractive mask designs
Mask color can be requested
Many ADF filters are suitable
Product description:Viewing size: 90x35mm/ 92x42mm/98x40mm/100X50mm/100×60mm
INQUIRY EMAIL

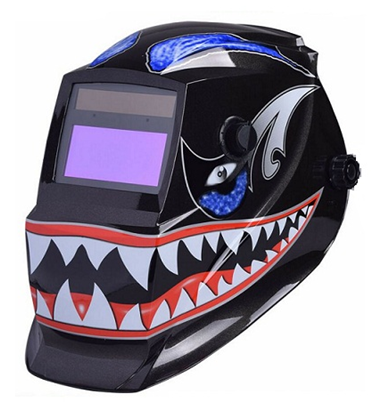

BE9000 Auto-darkening welding helmets

1) This welding helmets mask is attractive welding mask, very popular worldwide for many years..

Mask color can be as requested.

2) It can be mounted with many ADF filters, viewing size is 90x35mm 92x42mm/98x40mm/100X50mm/100×60mm...

3) It is Suitable for ARC, TIG, MIG, Spot, Micro, Wire, AC, DC, and Plasma Welders and Plasma Cutters.

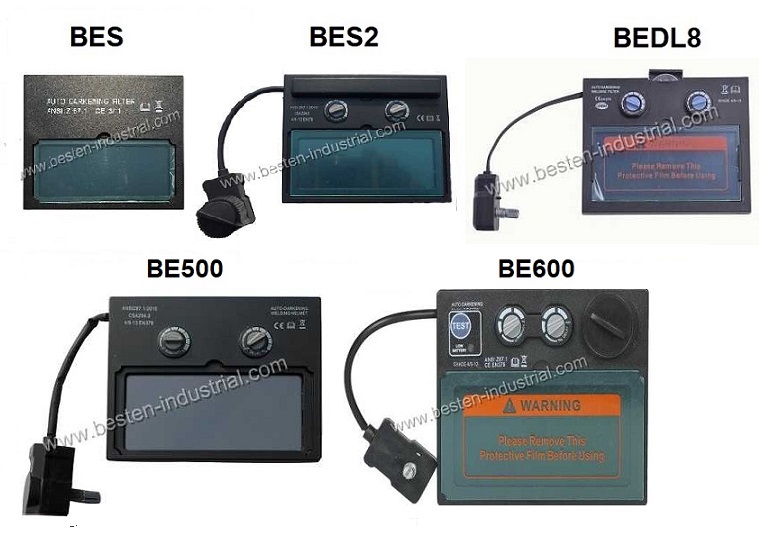

ADF filters Details are below:

Mark: Below filters can produce two levels: one is for family use, one layer ADF filter. the other is for workshop or factory use, two layer ADF filter.

Filter No.	view size	shade	sensitivity button	delay	self test	grind	low battery warning	battery change	Filter(ADF) more general information
BES	90x35 mm	DIN3/11	auto	auto	no	no	no	yes	Filter no.: BES Cartridge size:110x90x9mm Power supply: solar cells and lithium battery Viewing size: 90*35mm Optical class: 1/2/1/2 Switching time: <1/25000s Dark to light:0.6S UV/IV protection: DIN16
BES2	90x35 mm	DIN 4/9-13	yes	yes	no	yes	no	yes	Filter no.: BES2 Power supply: solar cells and 2 AAA battery Cartridge size:110x90x9mm Viewing size: 90*35mm Optical class: 1/2/1/2 Switching time: <1/25000s Dark to light:0.2-0.8S adjustable UV/IV protection:DIN16
BEDL8	92x42 mm	DIN 4/9-13	yes	yes	no	yes	no	yes	Filter no.: BEDL8 Cartridge size:110x90x9mm Opticalclass:1/1/1/2 Power supply: solar cells and lithium battery Switching time: <1/25000s Dark to light:0.2-0.8s adjustable UV/IV protection:DIN16
BE500	92x42 mm	DIN 4/9-13	yes	yes	no	yes	no	no	Filter no.: BE500 Cartridge size:110x90x9mm Optical class: 1/1/1/2 Power supply: solar cells and lithium battery Switching time: <1/25000s Dark to light:0.2S~0.8S adjustable UV/IV protection:DIN16
BE600	92x42 mm	DIN 4/9-13	yes	yes	yes	yes	yes	yes	Filter: BE600 Cartridge size:110x90x9mm Optical class:1/1/1/2 Power supply: solar cells and lithium battery Switching time: <1/25000s Dark to light:0.2S ~0.8S adjustable UV/IV protection:DIN16

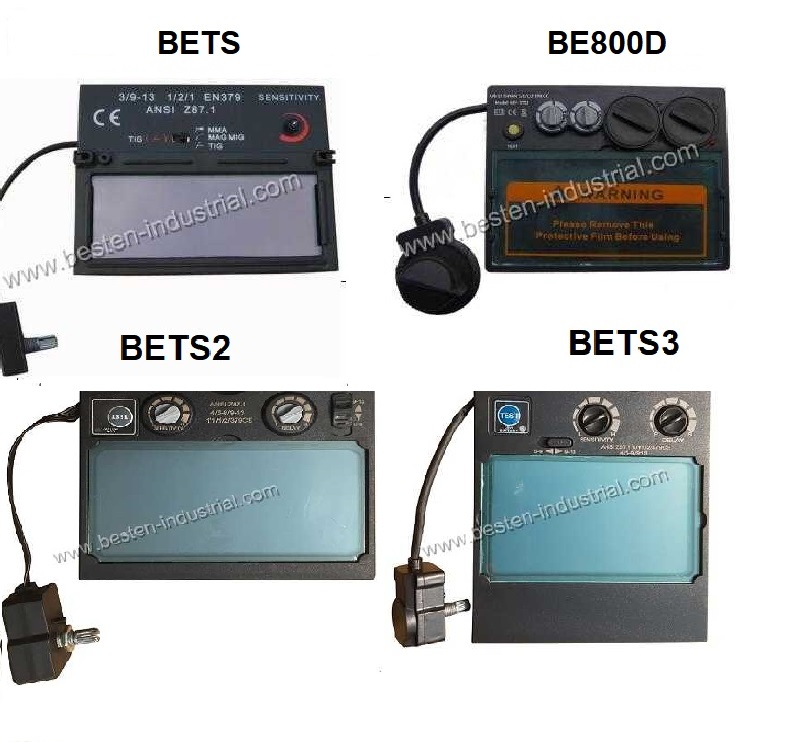

Mark: Below filters only can be produced two layer ADF filters.

Filter No.	view size mm	shade	sensitivity button	delay	self test	grind	low battery warning	battery change	Filter(ADF) more general information
BETS	98x40 mm	DIN 4/9-13	yes	yes	no	yes	no	yes	Filter no.: BETS Cartridge size:110x90x9mm Power supply: solar cells and lithium battery Viewing size:98*40mm Optical class: 1/1/1/2 Switching time: <1/25000s Dark to light:0.6S UV/IV protection: DIN16
BE800D	100x50 mm	DIN 4/9-13	yes	yes	yes	yes	yes	yes	Filter no.: BE800D Power supply: solar cells and lithium battery Cartridge size:110x90x9mm Viewing size:100*50mm Optical class: 1/1/1/2 Switching time: <1/25000s Dark to light:0.2-0.8S adjustable UV/IV protection:DIN16
BETS2	100x50 mm	DIN4 /DIN5-9 or 9-13	yes	yes	yes	yes	yes	yes	Filter no.: BETS2 Cartridge size:110x90x9mm Opticalclass:1/1/1/2 Power supply: solar cells and lithium battery Switching time: <1/25000s Dark to light:0.2-0.8s adjustable UV/IV protection:DIN16
BETS3	100X50 mm	DIN4 /DIN5-9 or 9-13	yes	yes	yes	yes	yes	yes	Filter no.: BETS3 Cartridge size:110x90x9mm Optical class: 1/1/1/2 Power supply: solar cells and lithium battery Switching time: <1/25000s Dark to light:0.2S~0.8S adjustable UV/IV protection:DIN16
